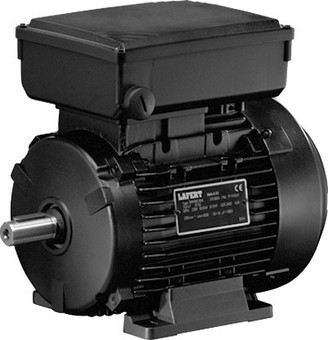

LM & LME - 2 POLE: 3600 RPM
LM(E) Base Mount Dimensions (IM B3) LM(E) Motor Connection Diagram
Full Screen Table
| PART NUMBER / FRAME SIZE | HP | WEIGHT (lbs) | Full Load Amps - 115V | Run Cap - 115V | LME Start Cap - 115V | LME Current Relay - 115V | Full Load Amps - 230V | Run Cap - 230V | LME Start Cap - 230V | LME Current Relay - 230V |
|---|---|---|---|---|---|---|---|---|---|---|
| LM56C2 | 0.15 | 8 | 2.5 | 16.0 | - | - | 1.2 | 4.0 | - | - |
| LM(E)63C2 | 0.15 | 10 | 2.4 | 16.0 | 53+20% | SE02 | 1.2 | 4.0 | 16+20% | SE02 |
| LM(E)63S2 | 0.25 | 11 | 3.2 | 25.0 | 53+20% | SE01 | 1.4 | 6.3 | 12.5+20% | SE01 |
| LM(E)63L2 | 0.33 | 12 | 3.7 | 25.0 | 53+20% | SE01 | 1.8 | 8.0 | 20+20% | SE01 |
| LM(E)71C2 | 0.50 | 16 | 8.7 | 20.0 | 36+20% | SE02 | 3.8 | 12.5 | 30+20% | SE01 |
| LM(E)71S2 | 0.75 | 19 | 7.9 | 16.0 | 53+20% | SE02 | 3.8 | 16.0 | 30+20% | SE02 |
| LM(E)80C2 | 1.00 | 25 | 12.0 | 60.0 | 124+20% | SE01 | 5.8 | 16.0 | 30+20% | SE02 |
| LM(E)80S2 | 1.50 | 25 | 13.6 | 50.0 | 161+20% | SE01 | 6.7 | 25.0 | 124+20% | SE02 |
| LM(E)80T2 | 2.00 | 32 | 16.8 | 60.0 | 189+20% | SE02 | 8.1 | 50.0 | 161+20% | SE02 |
| LM(E)90SC2 | 1.50 | 36 | 16.0 | 60.0 | 189+20% | SE02 | 7.5 | 50.0 | 124+20% | SE03 |
| LM(E)90LS2 | 2.00 | 38 | 22.0 | 70.0 | 189+20% | SE02 | 11.0 | 36.0 | 108+20% | SE02 |
| LM(E)90LL2 | 2.50 | 41 | 23.0 | 50.0 | 161+20% | SE02 | 11.5 | 40.0 | 124+20% | SE02 |
| LM(E)100LC2 | 3.00 | 54 | 25.8 | 80.0 | 187+20% | SE01 | 13.5 | 50.0 | 161+20% | SE03 |
| LME100LS2 | 5.00 | 55 | - | - | - | - | 17.0 | 60.0 | 161+20% | SE02 |
LM & LME - 4 POLE: 1800 RPM
LM(E) Base Mount Dimensions (IM B3) LM(E) Motor Connection Diagram
Full Screen Table
| PART NUMBER / FRAME SIZE | HP | WEIGHT (lbs) | Full Load Amps - 115V | Run Cap - 115V | LME Start Cap - 115V | LME Current Relay - 115V | Full Load Amps - 230V | Run Cap - 230V | LME Start Cap - 230V | LME Current Relay - 230V |
|---|---|---|---|---|---|---|---|---|---|---|
| LM56S4 | 0.12 | 8 | 2.0 | 25.0 | - | - | 0.09 | 6.3 | - | - |
| LM(E)63A4 | 0.15 | 10 | 1.2 | 16.0 | 30+20% | SE02 | 1.2 | 8.0 | 16+20% | SE01 |
| LM(E)63C4 | 0.25 | 11 | 3.1 | 25.0 | 30+20% | SE01 | 1.6 | 8.0 | 16+20% | SE01 |
| LM(E)71C4 | 0.33 | 16 | 4.6 | 12.5 | 30+20% | SE02 | 2.2 | 10.0 | 16+20% | SE02 |
| LM(E)71S4 | 0.40 | 17 | 5.9 | 16.0 | 20+20% | SE02 | 2.8 | 12.5 | 30+20% | SE01 |
| LM(E)71L4 | 0.50 | 19 | 6.5 | 25.0 | 30+20% | SE01 | 3.2 | 16.0 | 53+20% | SE02 |
| LM(E)80C4 | 0.50 | 22 | 5.5 | 50.0 | 124+20% | SE01 | 2.8 | 12.5 | 30+20% | SE02 |
| LM(E)80S4 | 0.75 | 25 | 9.1 | 50.0 | 124+20% | SE01 | 4.6 | 12.5 | 53+20% | SE01 |
| LM(E)80L4 | 1.00 | 28 | 10.6 | 50.0 | 124+20% | SE01 | 4.9 | 20.0 | 88+20% | SE01 |
| LM(E)90LC4 | 1.50 | 34 | 15.0 | 50.0 | 124+20% | SE02 | 8.3 | 25.0 | 108+20% | SE01 |
| LM(E)90LS4 | 2.00 | 39 | 22.0 | 60.0 | 108+20% | SE02 | 10.0 | 31.5 | 124+20% | SE01 |
| LM(E)100LC4 | 2.50 | 50 | 25.0 | 50.0 | 161+20% | SE02 | 12.0 | 50.0 | 124+20% | SE01 |
| LM(E)100LS4 | 3.00 | 53 | 27.0 | 60.0+70.0 | 324+20% | SE02 | 13.3 | 50.0 | 189+20% | SE02 |
| LM(E)112M/4 | 5.00 | 76 | - | - | - | - | 22.0 | 60.0 | 2x108+20% | SE02 |
LM & LME - 6 POLE: 1200 RPM
LM(E) Base Mount Dimensions (IM B3) LM(E) Motor Connection Diagram
Full Screen Table
| PART NUMBER / FRAME SIZE | HP | WEIGHT (lbs) | Full Load Amps - 115V | Run Cap - 115V | LME Start Cap - 115V | LME Current Relay - 115V | Full Load Amps - 230V | Run Cap - 230V | LME Start Cap - 230V | LME Current Relay - 230V |
|---|---|---|---|---|---|---|---|---|---|---|
| LM(E)71C6 | 0.20 | 18 | 3.8 | 25.0 | 53+20% | SE02 | 1.8 | 6.3 | 12.5+20% | SE01 |
| LM(E)80C6 | 0.35 | 19 | 4.6 | 40.0 | 108+20% | SE02 | 2.2 | 10.0 | 30+20% | SE02 |
| LM(E)80S6 | 0.50 | 22 | 5.9 | 50.0 | 124+20% | SE02 | 2.7 | 12.5 | 40+20% | SE01 |
| LM(E)90LC6 | 0.75 | 36 | 10.0 | 90.0 | 124+20% | SE02 | 4.7 | 31.5 | 64+20% | SE02 |
| LM(E)90LS6 | 1.00 | 40 | 10.2 | 50.0 | 88+20% | SE02 | 5.0 | 31.5 | 64+20% | SE02 |
| LM(E)100LC6 | 1.50 | 42 | 16.6 | 170.0 | 189+20% | SE02 | 7.8 | 40.0 | 88+20% | SE03 |
| LM(E)100LS6 | 2.00 | 50 | 20.0 | 140.0 | 189+20% | SE01 | 10.2 | 40.0 | 88+20% | SE01 |
LM / LME Motor B14 (C) Flanges - FL
LM(E) Flange Dimensions (IM B5 & IM B14)
Full Screen Table
| PART NUMBER / FRAME SIZE |
|---|
| FL56B14 |
| FL63B14 |
| FL71B14 |
| FL80B14 |
| FL90B14 |
| FL100B14 |
| FL112B14 |
| FL132B14 |
| FL160B14 |
LM / LME Motor B5 (D) Flanges - FL
DVE Flange Dimensions (IM B5 & IM B14)
Full Screen Table
| PART NUMBER / FRAME SIZE |
|---|
| FL56B5 |
| FL63B5 |
| FL71B5 |
| FL80B5 |
| FL90B5 |
| FL100B5 |
| FL112B5 |
| FL132B5 |
| FL160B5 |
