Immersion Pump - AP
Frame sizes: 80-112
Available up to 7.5 HP upon request - Inquire for pricing
Suitable for transferring liquids containing impurities up to 2 mm (closed impeller) or 3 mm (open impeller). Their hydraulic components: impeller and feed screw in cast iron, pump body in cast iron/steel allow them to be used with water, emulsions and oily substances in general, with a viscosity not exceeding 21 cSt (3° Engel). The temperature of the liquid must not exceed 90°C. They are commonly used on:
- machine tools (milling and turning machines-machining centres)
- glass processing machinery
- surface treatment plants
- filtration systems
Immersion Pump - IMM
See chart below for product offerings
Inquire for extended range
Suitable for transferring liquids containing impurities up to 3 mm in size. Their hydraulic components: impeller, feed screw and pump body in PBT allow them to be used with water, emulsions and oily substances in general, with a viscosity not exceeding 21 cSt (3° Engel). The temperature of the liquid must not exceed 70°C. They are commonly used on:
- machine tools (milling and turning machines-drills)
- glass processing machinery (TRI version)
- air-conditioning systems
| PART NUMBER / FRAME SIZE | HP | Full Load Amps - 460V | Full Load Amps - 575V | Suction Height (B dimension in mm) | WEIGHT (lbs) |
|---|---|---|---|---|---|
| IMM90A | 2.0 | 5.0 | 3.9 | 350 | 105 |
| IMM90A | 2.0 | 5.0 | 3.9 | 450 | 107 |
| IMM90A | 2.0 | 5.0 | 3.9 | 600 | 108 |
| IMM90A | 2.0 | 5.0 | 3.9 | 800 | 111 |
| IMM90B | 3.0 | 6.2 | 4.9 | 350 | 109 |
| IMM90B | 3.0 | 6.2 | 4.9 | 450 | 110 |
| IMM90B | 3.0 | 6.2 | 4.9 | 600 | 111 |
| IMM90B | 3.0 | 6.2 | 4.9 | 800 | 114 |
| IMM100B | 5.0 | 8.6 | 6.8 | 350 | 117 |
| IMM100B | 5.0 | 8.6 | 6.8 | 450 | 119 |
| IMM100B | 5.0 | 8.6 | 6.8 | 600 | 120 |
| IMM100B | 5.0 | 8.6 | 6.8 | 800 | 123 |

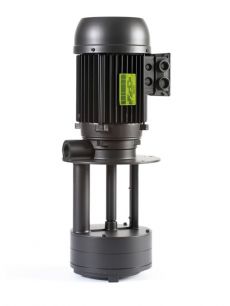

Immersion Pump - MP
Frame Sizes: 63-100
Available up to 5.5 HP upon request - Inquire for pricing
Suitable for transferring liquids containing impurities up to 3 mm in size. Their hydraulic components: impeller in brass, feed screw and pump body in aluminium allow them to be used with water, emulsions and oily substances in general, with a viscosity not exceeding 21 cSt (3° Engel). The temperature of the liquid must not exceed 90°C. They are commonly used on:
- machine tools (milling and turning machines-machining centres)
- glass processing machinery
- filtration systems

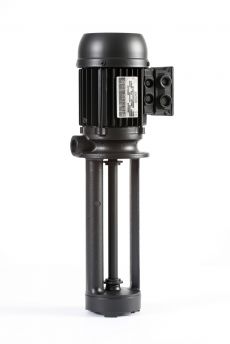

Immersion Pump - SPV
See chart below for product offerings
Inquire for extended range
Suitable for transferring liquids containing impurities up to 3 mm in size. Their hydraulic components: impeller, feed screw and pump body in PBT allow them to be used with water, emulsions and oily substances in general, with a viscosity not exceeding 21 cSt (3° Engel). The temperature of the liquid must not exceed 70°C. They are commonly used on:
- machine tools (milling and turning machines-drills)
- glass processing machinery (TRI version)
- printing machines
Dimension sheet includes SPV Pump weights (lbs) for each suction height.
| PART NUMBER / FRAME SIZE | HP | Full Load Amps - 460V | Full Load Amps - 575V | Suction Height (B dimension in mm) |
|---|---|---|---|---|
| SPV12 | 0.12 | 0.33 | 0.32 | 90-120-170-220-270-350 |
| SPV18 | 0.18 | 0.34 | 0.31 | 90-120-170-220-270-350 |
| SPV25 | 0.25 | 0.50 | 0.25 | 90-120-170-220-270-350 |
| SPV33 | 0.33 | 0.50 | 0.32 | 90-120-170-220-270-350 |
| SPV50 | 0.50 | 1.65 | 1.20 | 200-270-350-440-550 |
| SPV75 | 0.75 | 2.00 | 1.40 | 200-270-350-440-550 |
| SPV100 | 1.00 | 2.10 | 1.67 | 200-270-350-440-550 |
| SPV150 | 1.50 | 2.60 | 2.30 | 200-270-350-440-550 |
